Tirelli 10 Head Filler

This is a basic description and is provided for informational purposes only. All specifications, features, and details should be independently verified by the buyer.

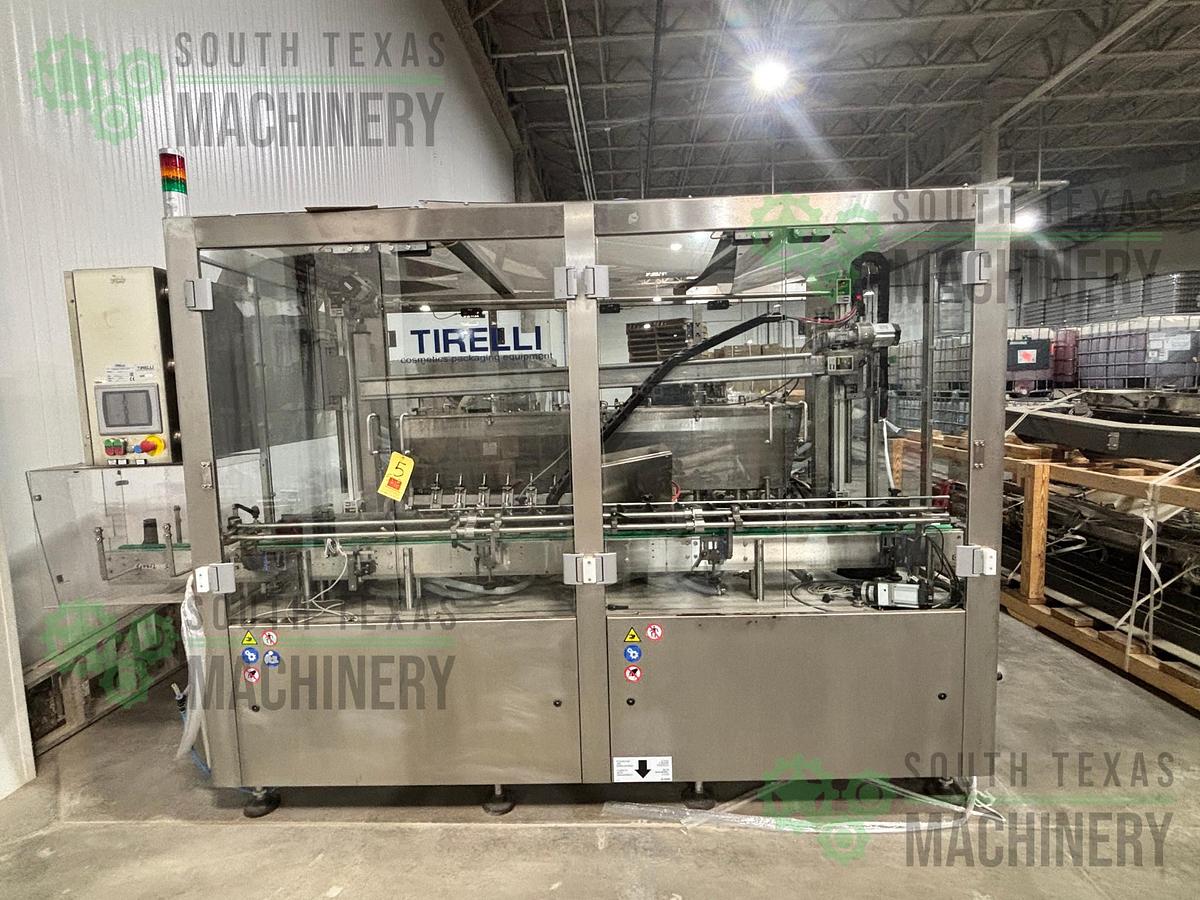

The 2021 Tirelli 10-Head Filler, Model GUJAP10, is a high-performance automatic liquid filling machine designed for precision, flexibility, and cleanliness in demanding production environments. Commonly used in cosmetics, personal care, pharmaceutical, and household product industries, the GUJAP10 features 10 servo-driven filling heads capable of handling a variety of liquid viscosities—from thin, water-like fluids to thicker creams or gels.

Its sanitary stainless steel construction, tool-free changeover, and programmable recipe management system ensure rapid transitions between products and container types, reducing downtime and increasing efficiency on the production floor.

Technical Specifications (Typical for this model – please verify actual configuration):

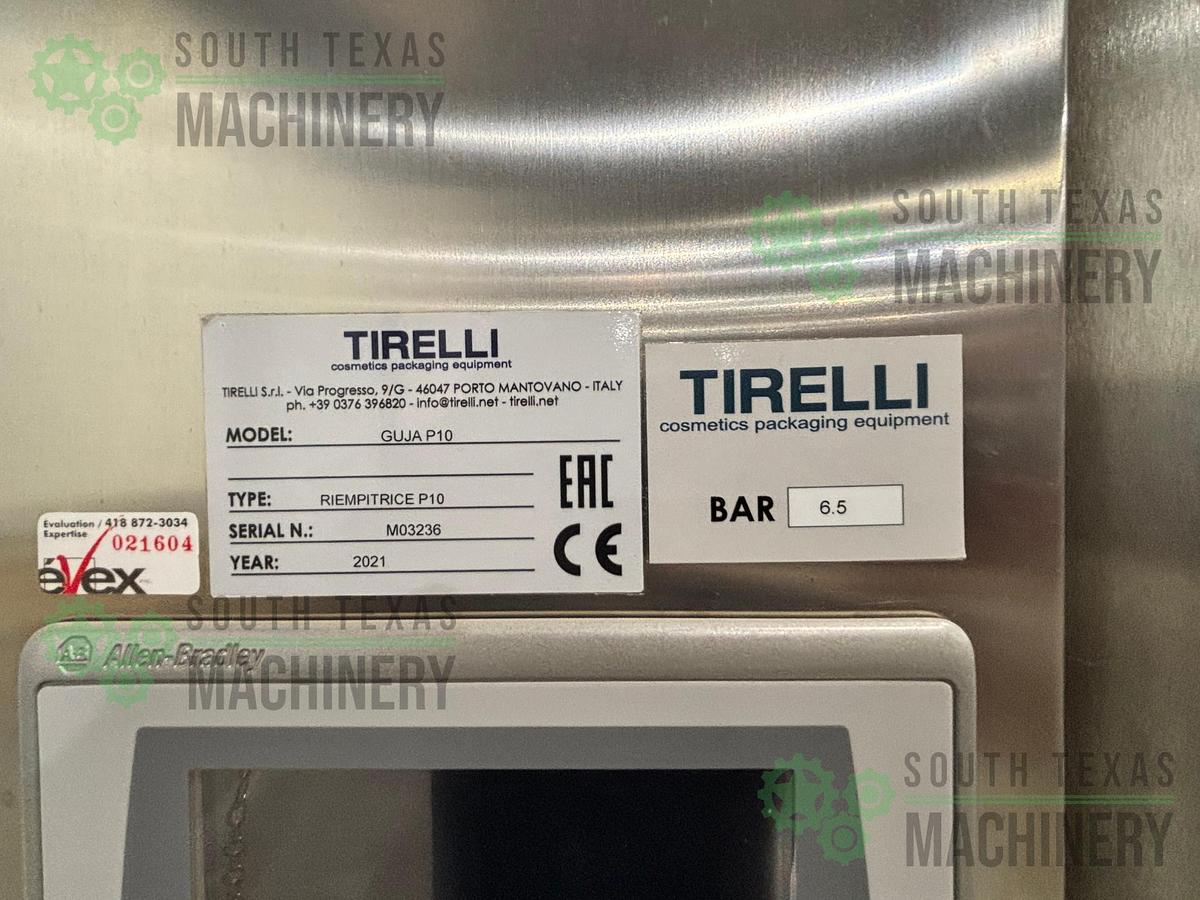

• Model: GUJAP10
• Year of Manufacture: 2021
• Filling Heads: 10 (servo-driven for high accuracy and control)
• Filling Volume Range: Approx. 10 mL to 1,000 mL (product- and tooling-dependent)
• Filling Accuracy: ± 0.5% (product-dependent)
• Production Speed: Up to 80–120 containers per minute (depending on product and container size)
• Product Types: Suitable for low- to high-viscosity liquids, including lotions, creams, shampoos, gels, etc.
• Construction: Stainless steel (AISI 304 or 316 contact parts) for hygienic operation
• Control System: PLC with HMI touchscreen interface
• Changeover Time: Quick-change components; tool-less design for fast product and container changeovers
• Nozzle Type: Diving nozzles (optional), anti-drip, or shut-off depending on product type
• Utilities Required:
• Power Supply: Typically 400V, 3-phase, 50/60 Hz (verify rating plate)
• Air Supply: Approx. 6 bar (for pneumatic components and optional functions)
• Footprint: Approx. 10 ft x 5 ft (varies based on layout and features)
