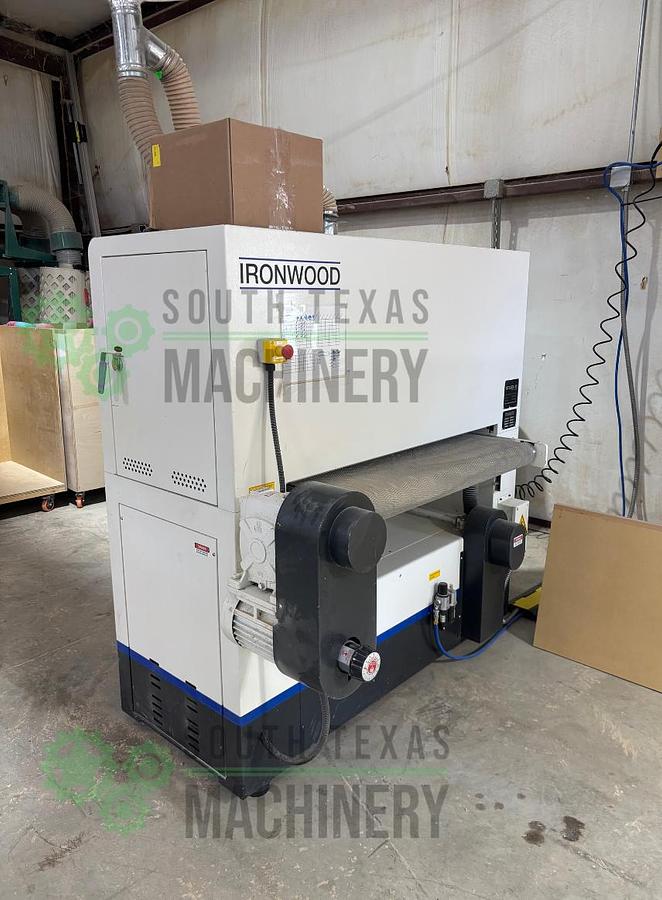

2022 Used Ironwood Wide Belt Sander

These are standard specs and may vary from actual machine.

Designed for a serious woodworker who demands absolute precision in sanding, this machine will save labor and will offer versatility to perform a variety of sanding tasks. The S114K includes a combination head with a steel contact roller.  Sanding head features poly-v-belt drive for smooth and vibration-free sanding results.  Machine includes a programmable digital controller, enabling quick set-up times and maximum stability, precision, and sanding quality.

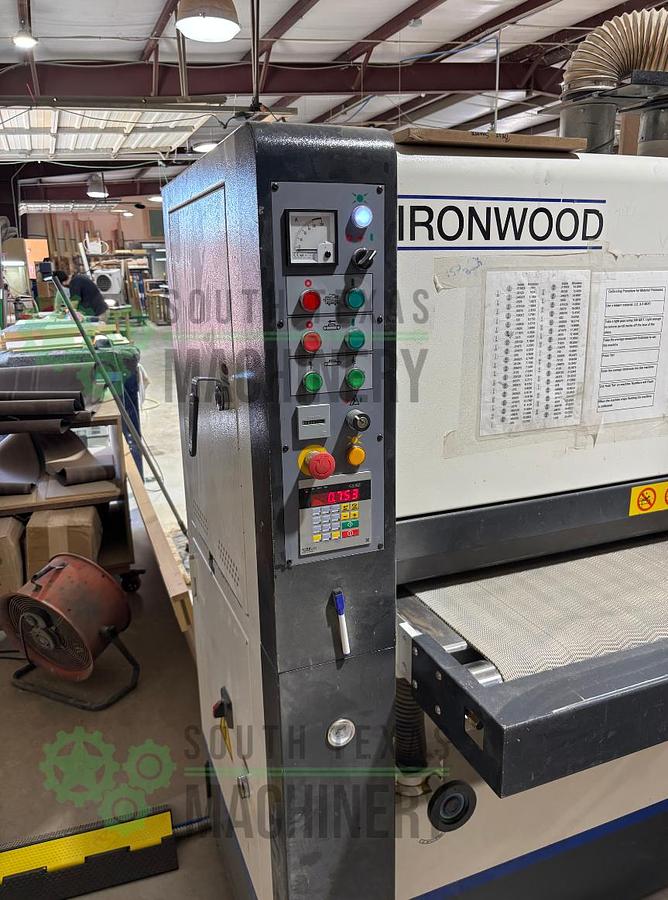

• Controller quickly adjusts machine thickness (+/- 0.1mm or 0.004”)
• Controller storage capacity of 99 programs for easy and fast adjustment
• Displays in mm or decimal inches (3 decimal places for inches)
• Simple push button controls for turning on and off each head
• Control switch with key for service or operation mode
• Amp meters for each sanding head

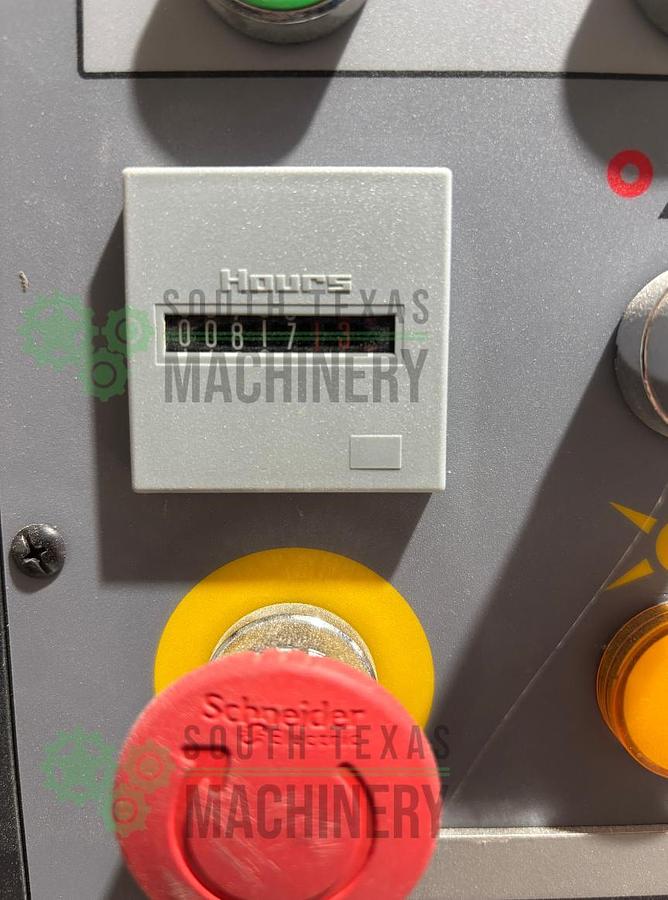

• Hour meter display
• Emergency stop
• 42” single head wide belt sander
• 130 mm diameter steel contact roller
• Height adjustable sanding pad
• Twenty (20) horsepower IE3 motor
• Poly-v belt drive
• Cutting speed of 20 mps (65 fps)
• Cutting direction against feed

Conveyor belt width 1100 mm (43”)

Abrasive belt width 1100 mm (43”)

Abrasive belt length 1524 mm (60”)

Workpiece thickness min. 3 mm (1/8”)

Workpiece thickness max. 125mm (4.9”)

Workpiece length min. 400 mm (15.75”)*

Variable conveyor speed 4 – 16 MPM (13 - 52 FPM)

Feed motor 2 HP

Table rise/fall motor ½ HP

Head #1: Combination head – 130mm Ø Steel contact roller with felt pad 20 HP 65 fps belt speed

Head #1: Rotation Direction Against feed

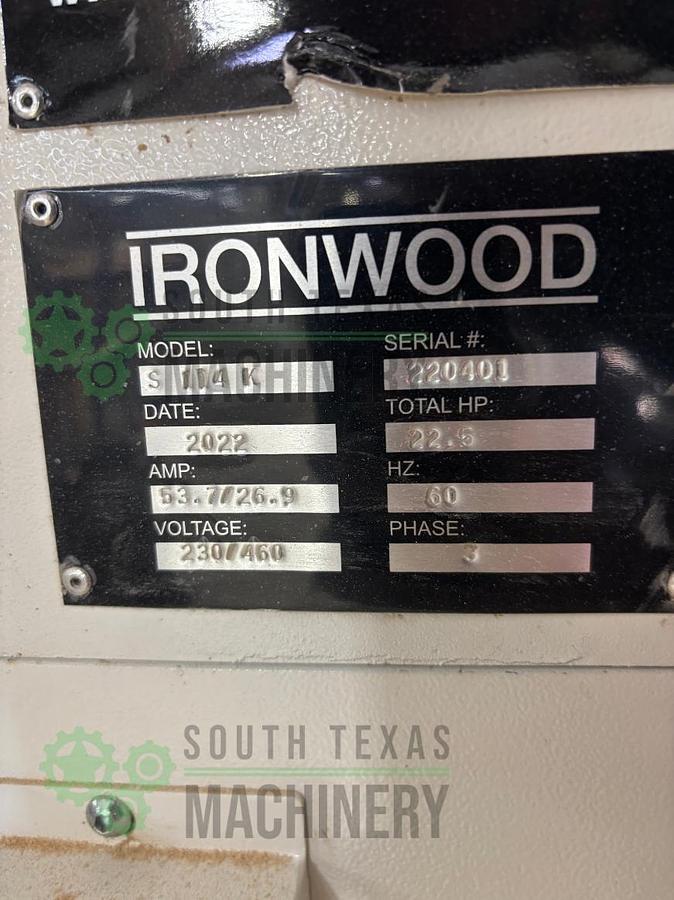

Electrical connection* 230V | 3-Phase | 60 Hz.

Dust collection requirements 800 CFM

Dust outlet – head #1 2 @ 100 mm (4”)

Compressed air requirements 90 PSI

Air consumption per cycle 4 CFM

Machine net weight 1,360 kgs (3,000 lbs)

Machine gross weight 1,534 kgs (3,380 lbs)

Shipping dimensions (LxWxH) 69” x 80” x 81”

*Minimum workpiece length is based upon feeding one individual workpiece.
