Omal CNC drill and dowel insertion

The SCM Omal HBD 1300 OF is a high-performance horizontal bore, glue, and dowel insertion machine engineered for exceptional precision, speed, and repeatability in cabinet, furniture, and component manufacturing. It automates the entire drilling, gluing, and dowel insertion process in one seamless cycle, producing perfectly aligned and durable joints while reducing operator error and cycle times.

Built for flexibility, the HBD 1300 OF features CNC-controlled movement with intelligent positioning and a user-friendly touch-screen interface for intuitive setup and operation. Programs can be quickly stored, recalled, and modified, making changeovers between jobs fast and efficient. Its robust construction and advanced motion control system deliver consistent accuracy across a wide range of panel sizes, materials, and production volumes.

Whether you’re running custom batch-one work or high-volume production, the HBD 1300 OF provides unmatched reliability, precision, and throughput—helping shops increase output while maintaining the highest standards of quality and craftsmanship.

All-in-one cycle: Automatic boring, gluing, and dowel insertion in a single operation for faster, more accurate assembly.

CNC-controlled X-axis: Ensures precise hole positioning and easy repeatability across different panel sizes.

Touch-screen interface: Simple programming, storage, and recall of drilling patterns and part setups.

High production efficiency: Reduces setup time and labor while improving consistency and output.

Adjustable working height: Accommodates various panel dimensions and applications.

Automatic glue dosing system: Applies the exact amount of glue for each dowel, ensuring strong and clean joints.

Heavy-duty frame and components: Built for long-term industrial use with reliable precision and stability.

Quick changeovers: Ideal for both batch-one and high-volume production environments.

Clean, low-maintenance operation: Efficient glue management and dowel feeding systems minimize downtime.

Working Capacity

Maximum working length

1300 mm (51")

Maximum panel thickness

60 mm (2.36")

Minimum panel thickness

12 mm (0.47")

Working height adjustment

Manual or motorized (depending on configuration)

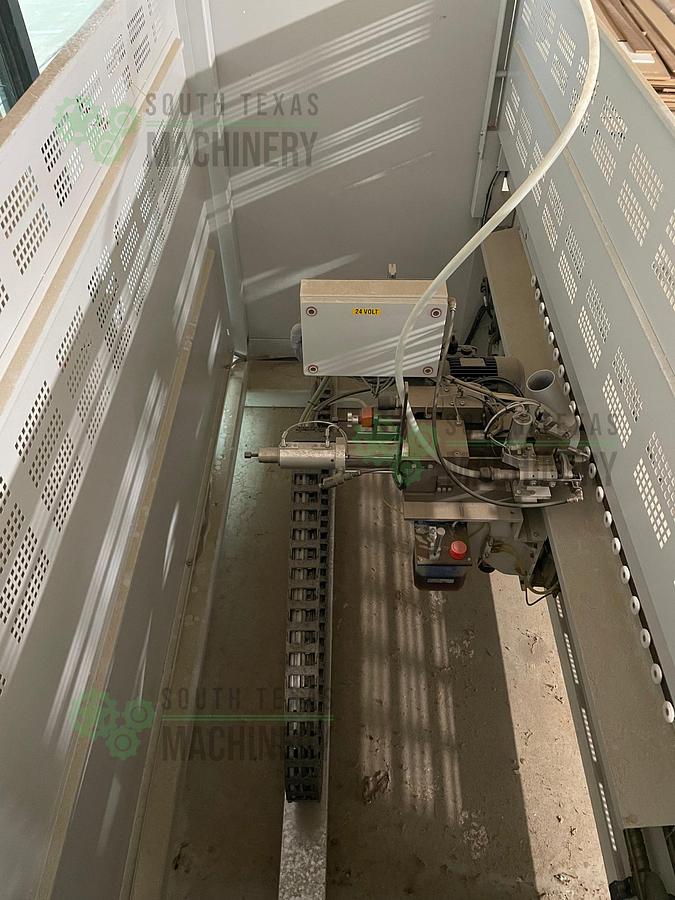

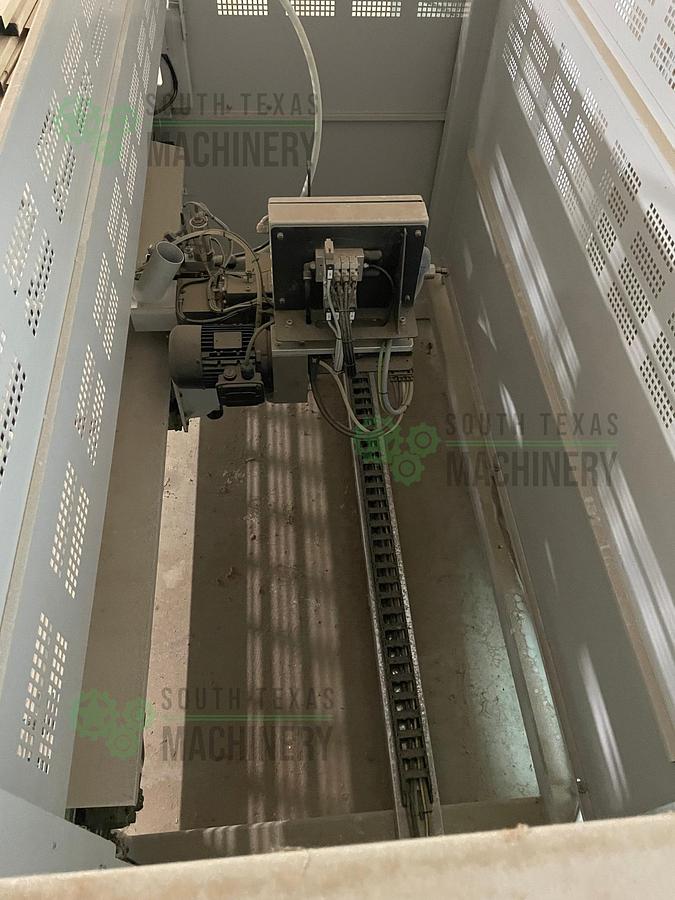

Drilling Unit

 Drilling head

Horizontal, single or dual spindle (depending on version)

Drilling depth

Up to 60 mm

Drill bit diameter

5–12 mm

Drilling speed

Variable, electronically controlled

Dowel Insertion System

Dowel diameter

6–10 mm

Dowel length

25–50 mm

Hopper capacity

Approx. 500 dowels

Insertion type

Automatic pneumatic insertion with adjustable depth

Glue Application

Glue type

PVA (standard)

System

Automatic glue dosing and injection

Quantity control

Adjustable per cycle

Glue circuit

Closed-loop to prevent clogging

Feed & Positioning System

Axis control

CNC-controlled X-axis

Clamping

Manual or automatic (depending on configuration)

Motion

Linear guide rails for precision and durability

Control System

Interface

10" touch-screen HMI

Programming

Memory storage for multiple drilling patterns

Diagnostics

On-screen maintenance and error reporting

Performance

Cycle time

Approx. 1.5–2.5 seconds per hole (depending on operation)

Accuracy

High repeatability and positional precision

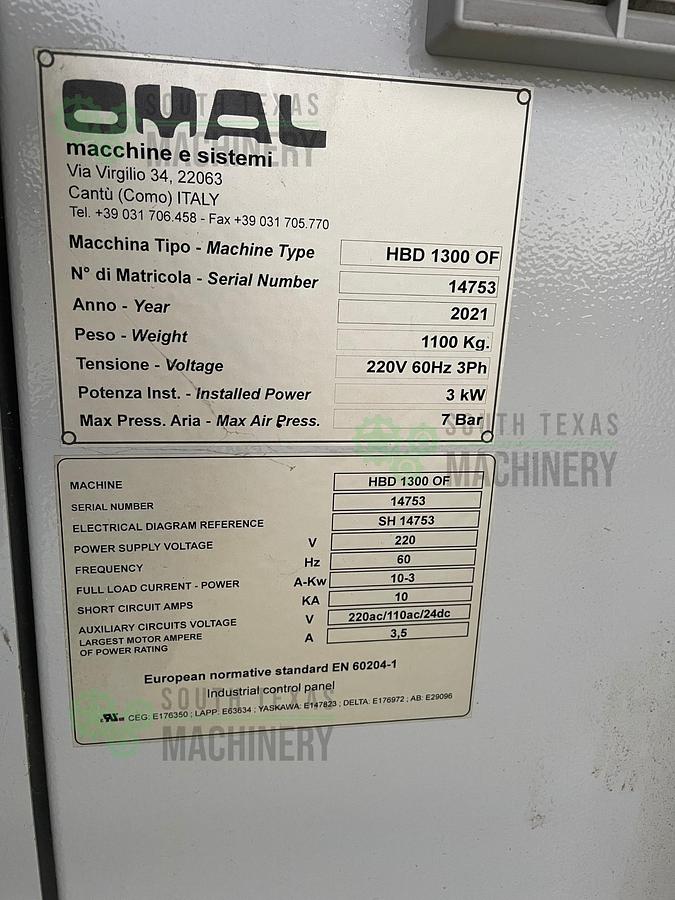

Electrical & Pneumatic

Voltage

230V or 460V, 3-phase

Installed power

Approx. 3–5 HP (2.2–3.7 kW)

Air pressure

6–8 bar (87–116 psi)

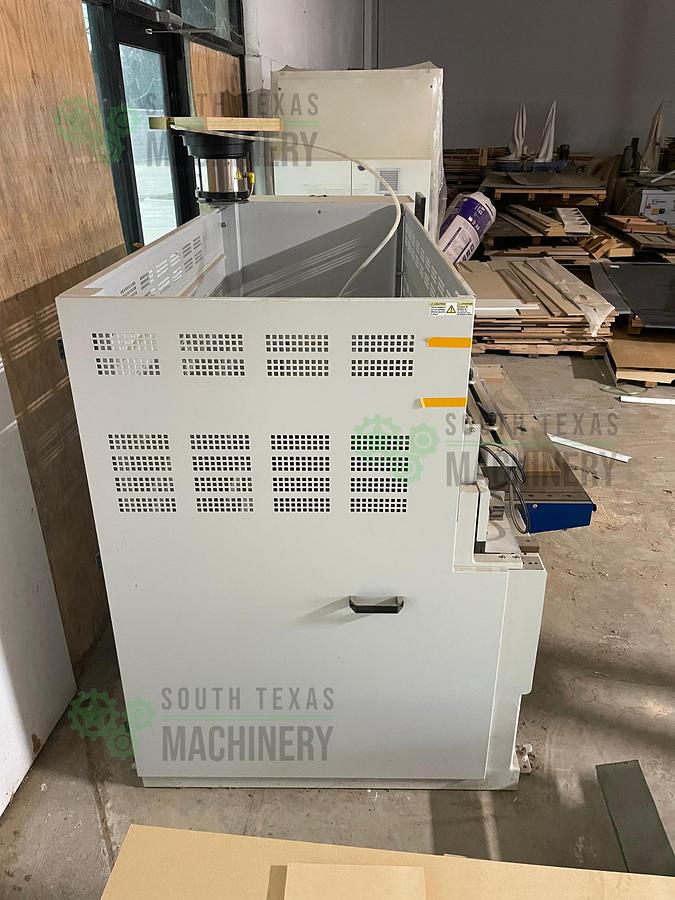

Dimensions & Weight

Length

2300 mm (90.5")

Width

900 mm (35.4")

Height

1500 mm (59")

Weight

Approx. 1,100 kg (2,425 lbs)
